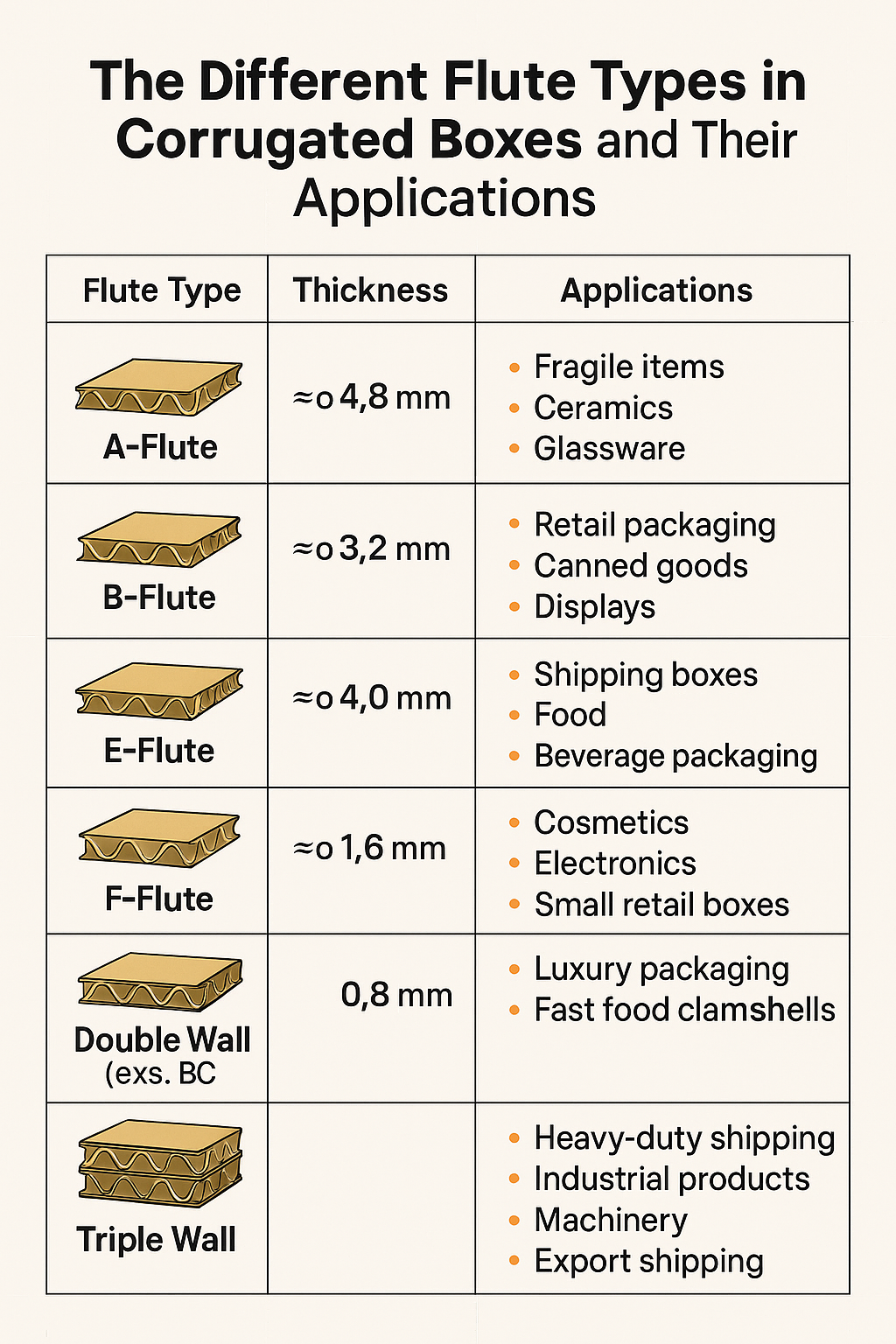

The Different Flute Types in Corrugated Boxes and Their Applications
Corrugated boxes are built for strength, protection, and versatility—and the flute type inside the board makes a big difference. Flutes are the wave-shaped paper between the outer liners. They determine a box’s thickness, cushioning ability, and stacking strength.
1. A-Flute
Thickness: ~4.8 mm
Features: Largest flute size
Strengths: Excellent cushioning and stacking strength
Common Uses: Fragile items, ceramics, glassware, industrial parts
Why Choose It: When protection from impact and compression is key
2. B-Flute
Thickness: ~3.2 mm
Features: More flutes per foot than A
Strengths: Better puncture resistance, good for printing
Common Uses: Retail packaging, canned goods, displays
Why Choose It: A balance of strength and surface quality for print
3. C-Flute
Thickness: ~4.0 mm
Features: Most common flute type
Strengths: Good crush resistance, decent printing surface
Common Uses: Shipping boxes, food and beverage packaging
Why Choose It: All-purpose option—versatile and cost-effective
4. E-Flute
Thickness: ~1.6 mm
Features: Thin and dense flutes
Strengths: Superior printing surface, lightweight
Common Uses: Cosmetics, electronics, small retail boxes
Why Choose It: Sleek look, sharp print, compact packaging
5. F-Flute
Thickness: ~0.8 mm
Features: Very fine flute profile
Strengths: Excellent graphics and reduced material use
Common Uses: Luxury packaging, fast food clamshells
Why Choose It: Premium presentation with minimal bulk
6. Double Wall (e.g., BC, EB, AC)
Structure: Combines two flute types (e.g., B + C)
Strengths: Extra strength and durability
Common Uses: Heavy-duty shipping, industrial products
Why Choose It: High stacking strength and shock absorption
7. Triple Wall
Structure: Three fluted mediums
Strengths: Heavyweight protection
Common Uses: Machinery, export shipping, bulk containers
Why Choose It: When you need a cardboard tank
Choosing the Right Flute
The right flute type depends on what you're shipping, how much it weighs, how it's handled, and how it’s presented. Ask yourself:
Is cushioning or compression resistance more important?
Does print quality matter?
Will the box be stacked or shipped individually?
Is cost or material reduction a priority?
Matching Flute Type to Packaging Needs
To make the most informed decision, let’s match common packaging needs to the ideal flute types:
| Packaging Need | Recommended Flute Type(s) | Reason |
|---|---|---|
| Fragile, breakable items | A-Flute, Double Wall (e.g., AC) | Maximum cushioning and impact resistance |
| High-end retail presentation | F-Flute, E-Flute | Smooth surface for detailed graphics and compact packaging |
| Cost-effective general shipping | C-Flute | Reliable strength and versatility |
| Puncture-resistant packaging | B-Flute, BC Double Wall | Denser flute pattern resists sharp edges |
| Heavy, bulky industrial products | Double Wall, Triple Wall | High stacking and compression strength |
| Display or promotional packaging | E-Flute, B-Flute | Good print surface combined with manageable strength |
| Eco-conscious or material-saving design | F-Flute, E-Flute | Uses less fiber without sacrificing quality |
Flute Direction: Another Critical Choice
In addition to flute size, consider flute direction—the orientation of the flutes relative to the box.
Vertical flutes (along the height of the box) improve stacking strength.
Horizontal flutes (across the width) offer better compression resistance during side impacts.
For example, if your boxes are often palletized, vertical flute direction helps retain shape and structural integrity under load.
Combining Flutes for Optimized Packaging
Double and triple wall corrugated boards don’t just add thickness—they allow for combining characteristics of multiple flutes:
BC Flute: A strong combination for heavy items, balancing B's rigidity with C’s cushioning.
EB Flute: A slimmer double-wall option, great for compact strength and decent printing.
AC Flute: Bulky but offers maximum protection for heavy-duty shipping and sensitive components.
This approach allows customization by weight, fragility, and even branding needs.
The Role of Flute Type in Sustainability
Flute type also impacts environmental factors:
Thinner flutes like E and F reduce raw material usage and lower transportation costs due to lighter weight.
Stronger flutes like A or double walls reduce the need for secondary protective materials (like foam or bubble wrap), reducing total packaging waste.
Choosing the optimal flute type isn’t just about protection—it’s also a strategic move toward cost-saving and sustainability.
Final Thoughts
Understanding flute types helps businesses:
Improve packaging efficiency
Protect products effectively
Enhance customer unboxing experiences
Reduce environmental impact and shipping costs
Whether you’re shipping electronics, gourmet food, industrial tools, or luxury cosmetics, choosing the right flute type is a key step in building a better packaging solution.
